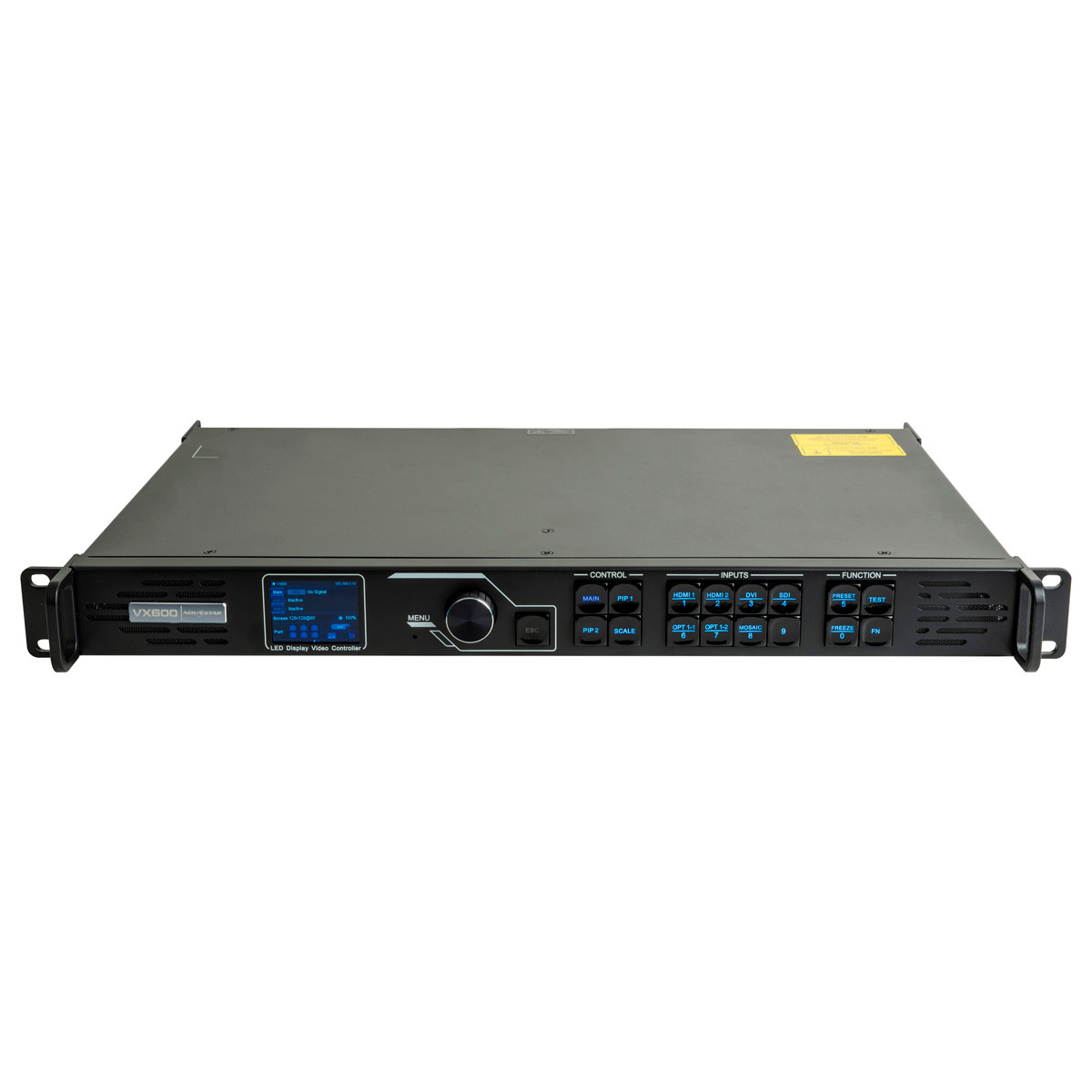

ADJ Novastar VX600

The VX600 is capable of receiving a variety of video signals and processing high-resolution images. In addition, the device features stepless output scaling, low latency, pixel-level brightness and chroma calibration and more, to present you with an excellent image display experience.

What's more, the VX600 can work with NovaStar's supreme software NovaLCT and V-Can to greatly facilitate your infield operations and control, such as screen configuration, Ethernet port backup settings, layer management, preset management and firmware update.

Thanks to its powerful video processing and sending capabilities and other outstanding features, the VX600 can be widely used in applications such as medium and high-end rental, stage control systems and fine-pitch LED screens.

Specifications

Loading Capacity:

•  3.9 million pixels


Maximum pixel width & height:

•  Width up to 10,240 pixels
•  Height up to 8,192 pixels


Layers:

•  3x 2K×1K


Inputs:

•  2x HDMI1.3
•  1x DVI
•  1x 3G-SDI
•  1x OPT1

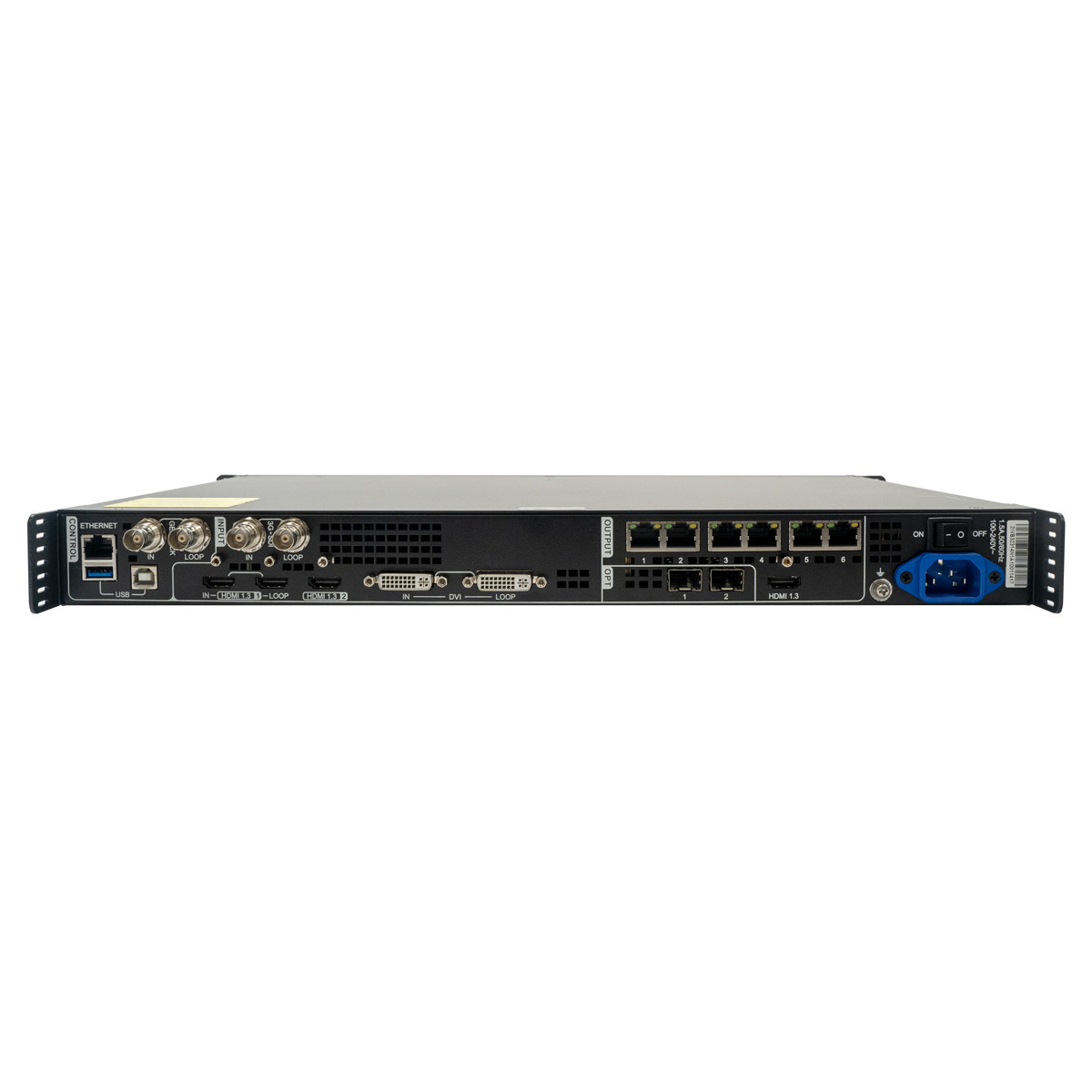

Outputs:

•  6x Ethernet Ports for LED Screen connection
•  1x HDMI (Monitoring or Output)
•  1x HDMI1.3 LOOP
•  1x DVI LOOP
•  1x 3G-SDI LOOP
•  2x OPTICAL for LED Screen connection


Control:

•  GENLOCK (IN & LOOP):Yes
•  1x Ethernet Port
•  1x USB-A
•  1x USB-B
•  Low Latency: Yes
•  Input Source Backup: Yes
•  Bypass Mode: Yes
•  Fiber Converter Mode: Yes



Electrical & Environmental:

•  Power connector 100–240V~, 1.5A, 50/60Hz
•  Rated power consumption 28 W
•  Temperature –10°C to +60°C
•  Humidity 20% RH to 90% RH, non-condensing


Dimensions & Weight:

•  Dimensions 483.6 mm × 351.2 mm × 50.1 mm
•  Weight 4 kg

• Included accessories:
•  1x Power cord
•  1x HDMI to DVI cable
•  1x USB cable1x Ethernet cable
•  1x HDMI cable
•  1x Quick Start Guide
•  1x Certificate of Approval
•  1x Customer Letter
•  1x Safety Manual
