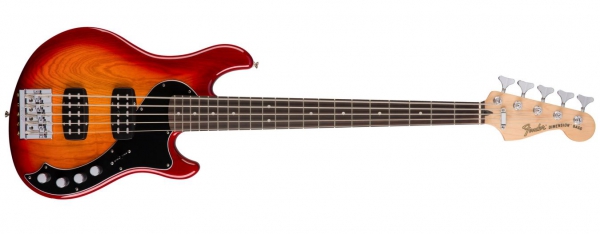

Fender Deluxe Active Dimension Bass V ACB

Series:                              Deluxe
Body Material:                Ash
Body Finish:                    Gloss Polyester
Neck:                                Maple, C Shape
Neck Finish:                    Satin Polyurethane
Fingerboard:                   Rosewood, 12 (305 mm) (on 305,331), Maple, 12 (305 mm) (on 321)
Frets:                               21, Medium Jumbo
Position Inlays:               Black Pearloid Dots on Maple, White Pearloid Dots on Rosewood
Nut (Material/Width):   Synthetic Bone, 1.75 (44.5 mm)
Tuning Machines:          Standard Open-Gear
Scale Length:                 34 (864 mm)
Bridge:                            Fender HiMass with Chrome-Plated Zinc Saddles
Pickguard:                      3-Ply Black/White/Black
Pickups:                          Dimension Humbucking (Bridge), Dimension Humbucking (Middle)
Pickup Switching:         5-Position Blade: Pos 1. Bridge Pickup, Pos 2. Inner Coils of Bridge
                                         and Middle Pickup, Pos 3. Full Middle and Bridge, Pos 4. Outer
                                         Coils of Bridge and Middle Pickup, Position 5. Middle Pickup
Controls:                         Master Volume, Three-Band Active EQ with Treble Boost/Cut, Bass Boost/Cut and Mid Boost/Cut
Control Knobs:              Knurled Flat-Top
Hardware Finish:          Nickel/Chrome
Strings:                           Fender® USA NPS, (Gauges .45 - .125)
